Okta Portal SSO

Use Okta as Identity Provider to login to Halo portal using SSO.

Prerequisites​

Register your app in Okta​

Create app integration​

  1. Login to Okta Admin Console → Navigate to Applications -> Applications.

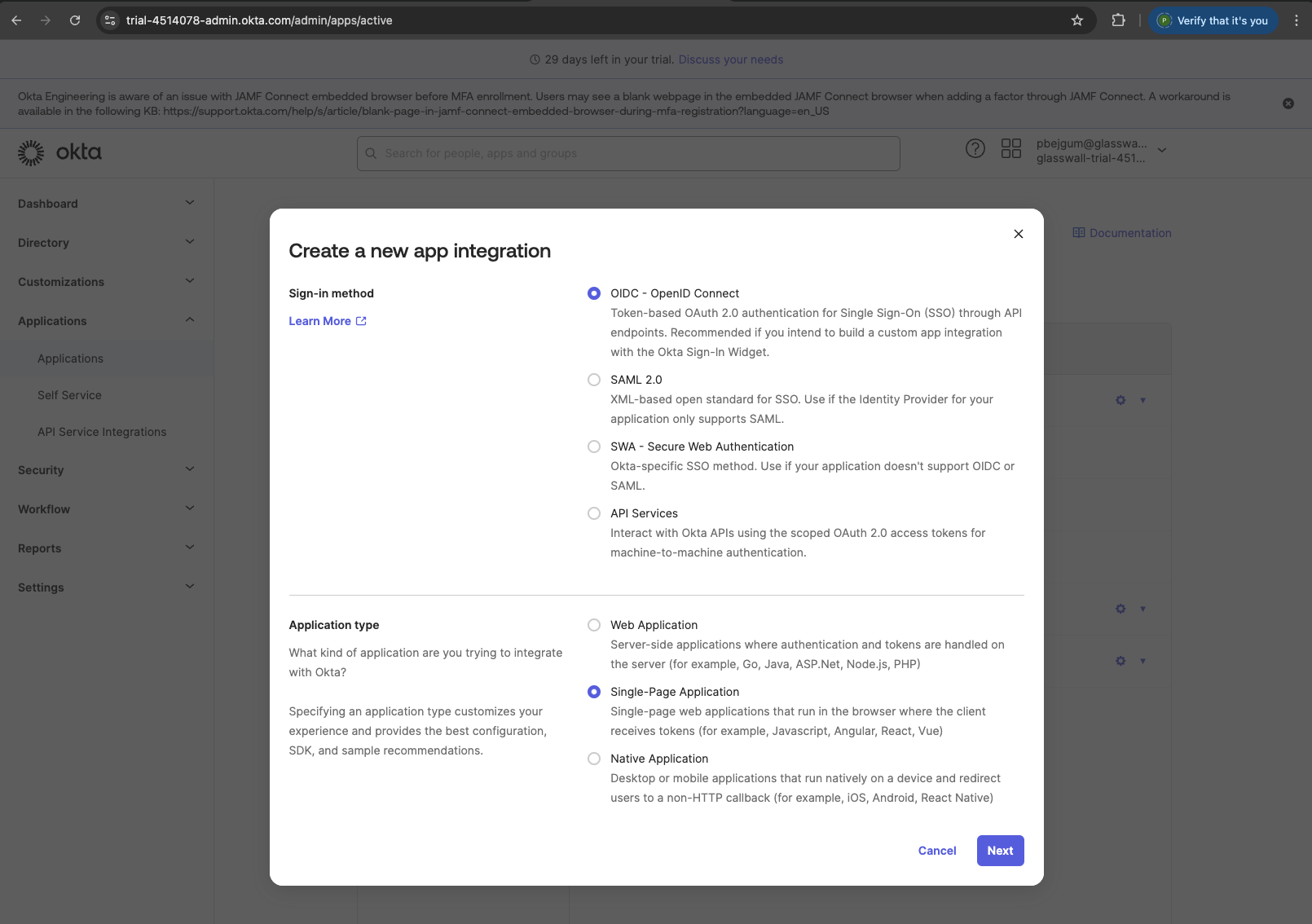

  2. Click Create App Integration → Choose OIDC - OpenID Connect.
  3. Click Single-Page Application.


Configure app integration​

  1. Configure the following settings:
    • App integration name: e.g. Glasswall Halo Portal
    • Grant type: Choose below 3 options
      • Authorization Code
      • Refresh Token
      • Implicit (hybrid)
    • Sign-in redirect URIs: e.g. https://<your-halo-domain>/authentication/login-callback
    • Sign-out redirect URIs: e.g. https://<your-halo-domain>/authentication/logout-callback
    • Controlled access: Choose Allow everyone in your organization to access. Or select only specific groups if you want to limit the access to few people.
    • Unselect Enable immediate access with Federation Broker Mode.

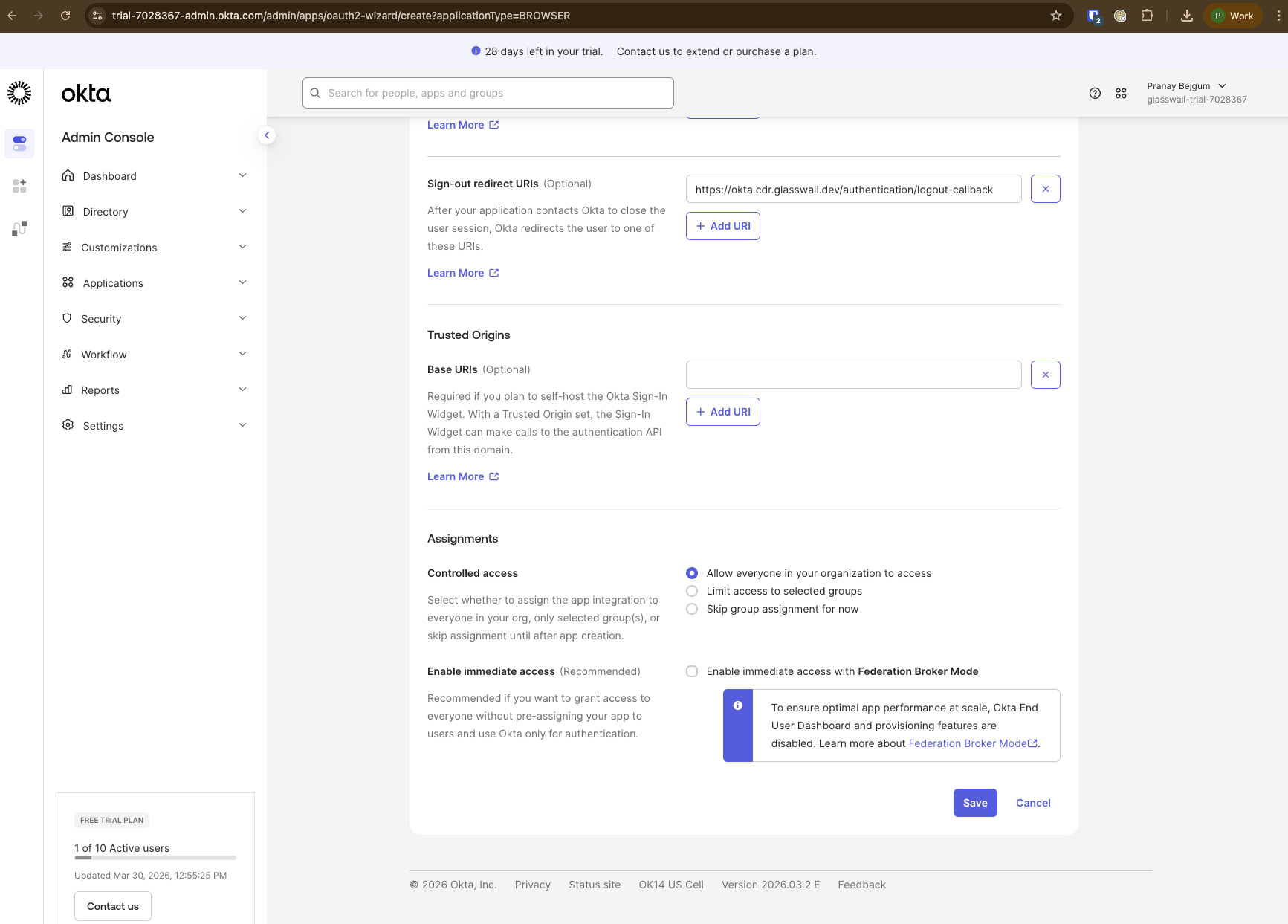

Screenshot: Halo Portal Client Screenshot: Halo Portal Client

Save application and note client ID​

  1. Save the Application and note the Client ID.

    export PORTAL_CLIENT_ID=""

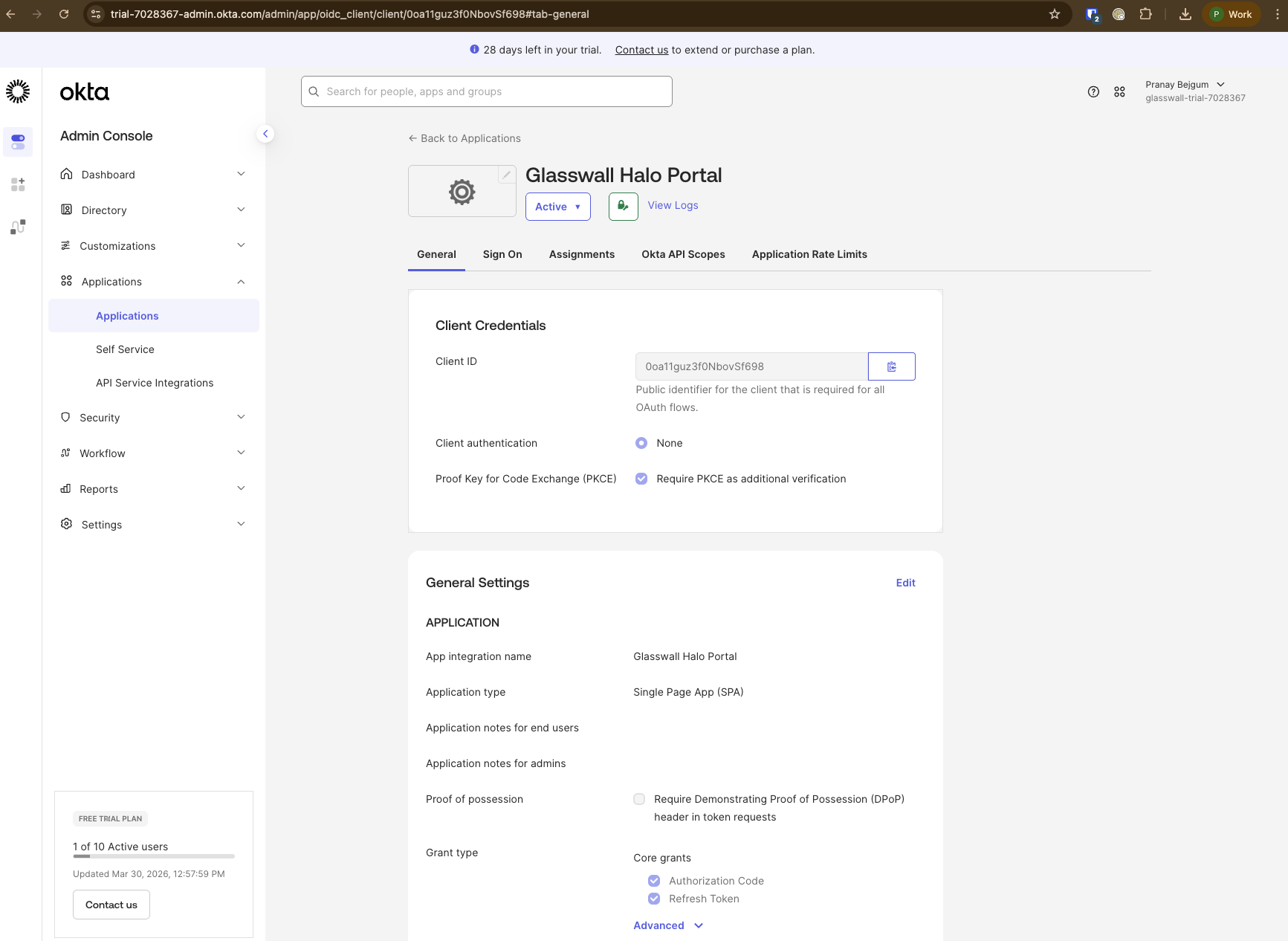

Screenshot: Portal client id

Grant API scopes​

  1. Navigate to Okta API Scopes tab in the application and grant below scopes.
    • okta.myAccount.email.read
    • okta.myAccount.profile.read
    • okta.users.read
    • okta.users.read.self

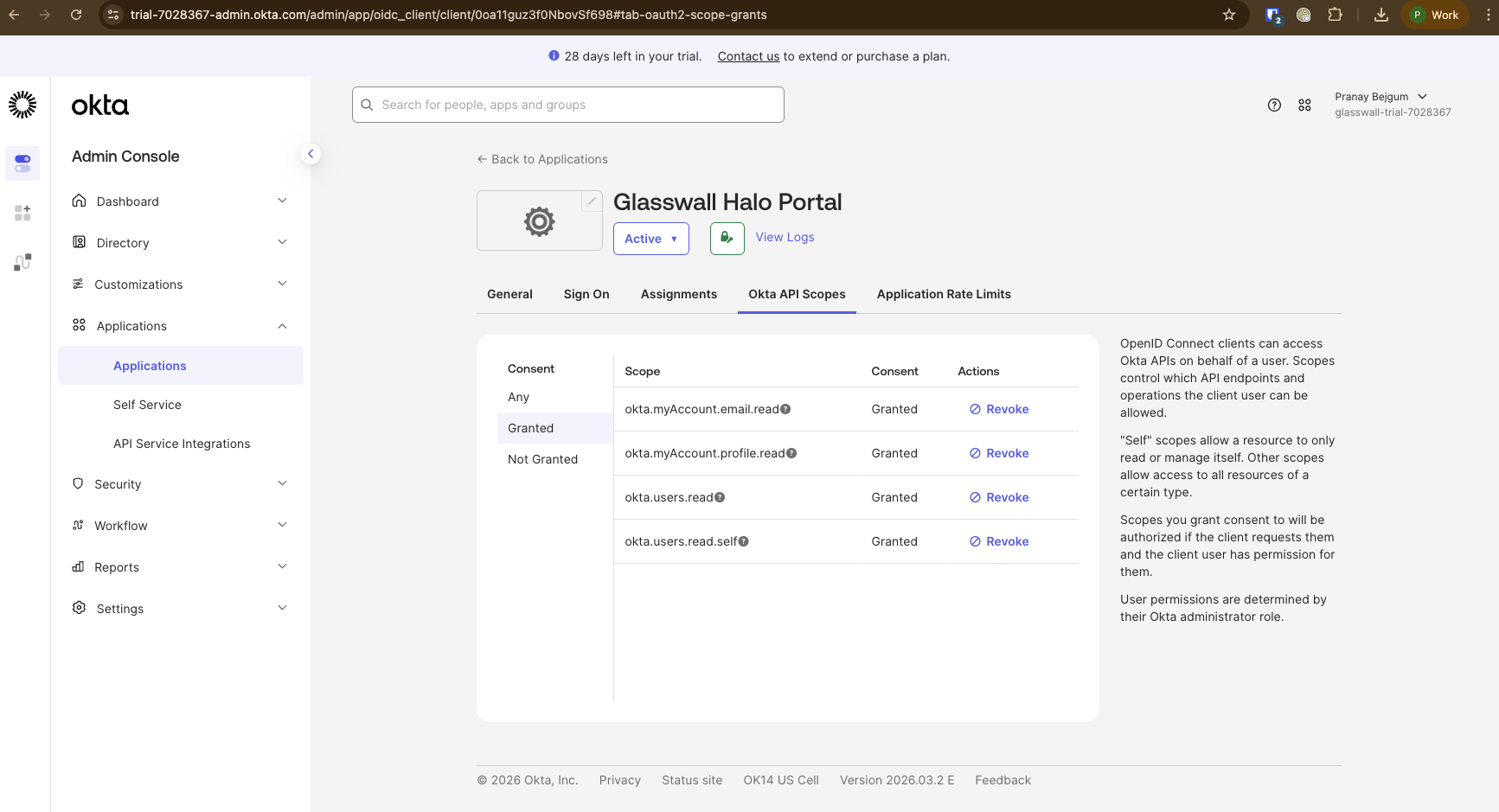

Screenshots: Portal Okta API Scopes

Note issuer URI and audience​

  1. From the authorization server configured in the prerequisite step, note the Issuer Metadata URI and VALID_AUDIENCE:

    export OKTA_ISSUER_URI="https://<your-okta-domain>/oauth2/<authorization-server-id>"
    export OKTA_ORIGIN="https://<your-okta-domain>"
    export VALID_AUDIENCE="api://halo"

Add access policy for portal​

  1. Navigate to the authorization server's Access Policies tab (Security -> API -> select your authorization server -> Access Policies).
  2. Add a new access policy:
    • Name: e.g. Portal SSO Access
    • Description: e.g. Access policy for Halo Portal SSO users
    • Assign to: the Portal SPA client created above (search by name Glasswall Halo Portal)
  3. Add a rule:
    • Name: e.g. Allow Portal Users
    • Grant type: Authorization Code
    • User is a member of: Everyone (or restrict to a specific group, e.g., Halo-Admin, if you want to limit Portal access)
    • Leave other settings as defaults or adjust as needed.

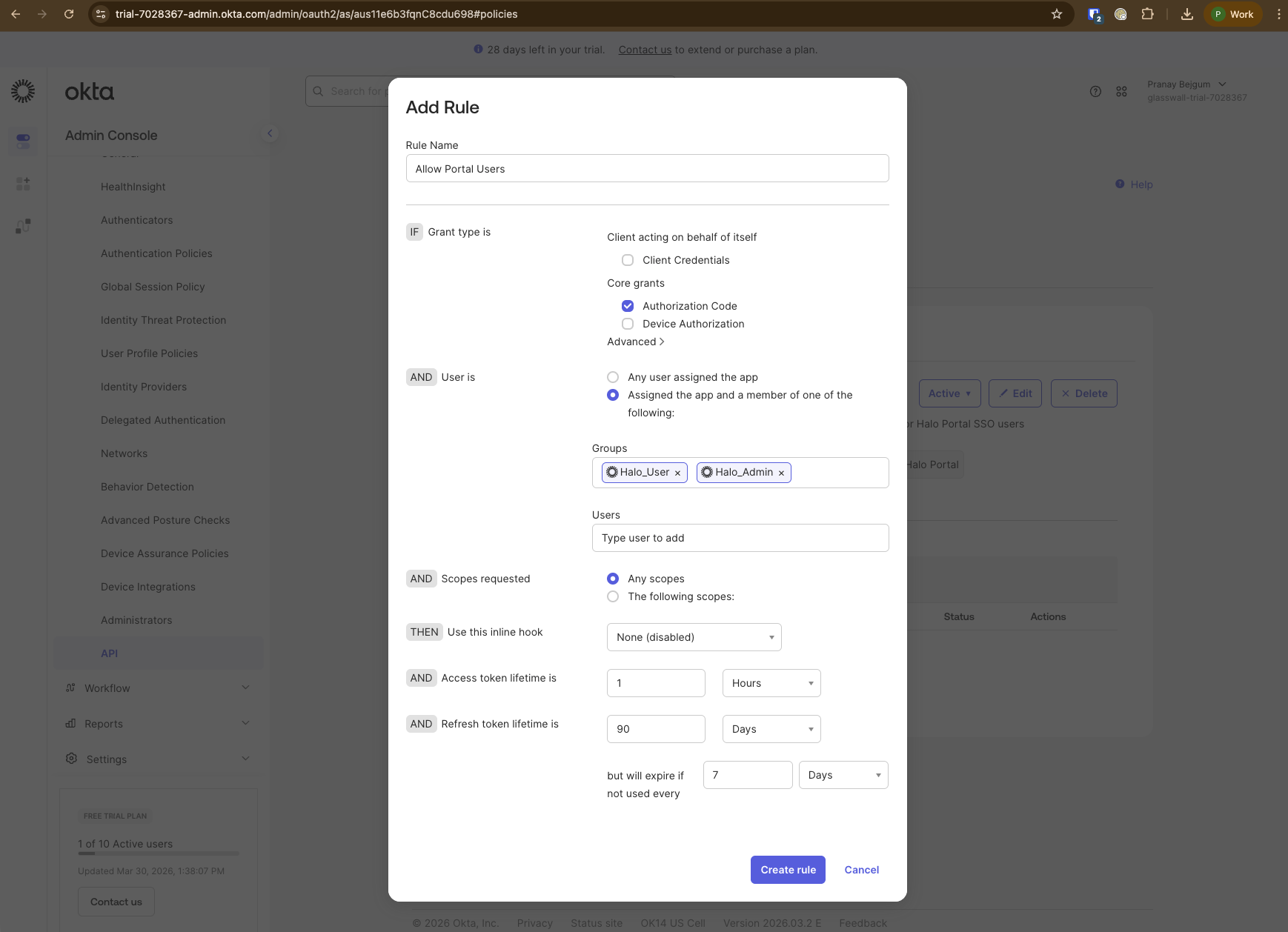

Screenshot: Access policy for Portal SSO Screenshot: Add rule

Update Portal service​

export HALO_DOMAIN=<your-halo-domain>
helm upgrade --install cdrplatform-portal cdrplatform-portal -n cdrplatform --reuse-values \
  --set configuration.AutoAdmin=false \
  --set configuration.BackendScope="email openid profile" \
  --set configuration.BackendUrl="https://${HALO_DOMAIN:?}" \
  --set configuration.EnabledPages="SystemSettings\,PolicySettings\,IcapSettings\,IcapRequests\,IcapReporting" \
  --set configuration.OIDC.ProviderOptions.Authority="${OKTA_ISSUER_URI:?}" \
  --set configuration.OIDC.ProviderOptions.ClientId="${PORTAL_CLIENT_ID:?}" \
  --set configuration.OIDC.ProviderOptions.PostLogoutRedirectUri="https://${HALO_DOMAIN:?}/authentication/logout-callback" \
  --set configuration.OIDC.ProviderOptions.RedirectUri="https://${HALO_DOMAIN:?}/authentication/login-callback" \
  --set appenvironment.HTTP_CSP_CONNECT_SRC="'self' ${OKTA_ORIGIN:?}" \
  --set appenvironment.HTTP_CSP_FRAME_SRC="'self' ${OKTA_ORIGIN:?}" \
  --set appenvironment.HTTP_CSP_FRAME_ANCESTORS="'self' ${OKTA_ORIGIN:?}" \
  --set ingress.enabled=true \
  --set ingress.tls.domain="${HALO_DOMAIN:?}" \
  --set ingress.tls.enabled=true \
  --atomic

Update Portal-Access service​

helm upgrade --install cdrplatform-portal-access -n cdrplatform cdrplatform-portal-access --reuse-values \
  --set configuration.Authentication__Schemes__Bearer__Authority="${OKTA_ISSUER_URI:?}" \
  --set configuration.Authentication__Schemes__Bearer__ValidAudiences__0="${VALID_AUDIENCE:?}" \
  --set configuration.Authentication__Schemes__Bearer__ValidIssuer="${OKTA_ISSUER_URI:?}" \
  --set configuration.AuthenticationScheme="Bearer" \
  --set configuration.CORSDOMAIN="'*'" \
  --set ingress.enabled=true \
  --set ingress.tls.domain="${HALO_DOMAIN:?}" \
  --set ingress.tls.enabled=true \
  --atomic

Provide access to users​

There are 2 roles in Halo - User and Admin. Roles are configured via group membership on the Okta authorization server (see Define Roles).

  • To provide user role, add the user to the Halo_User group.
  • To provide admin role, add the user to the Halo_Admin group.
